Plastic Exhaust PE-135
Plastic Exhaust PE-135 Price range: ₨3450.00 through ₨3830.00

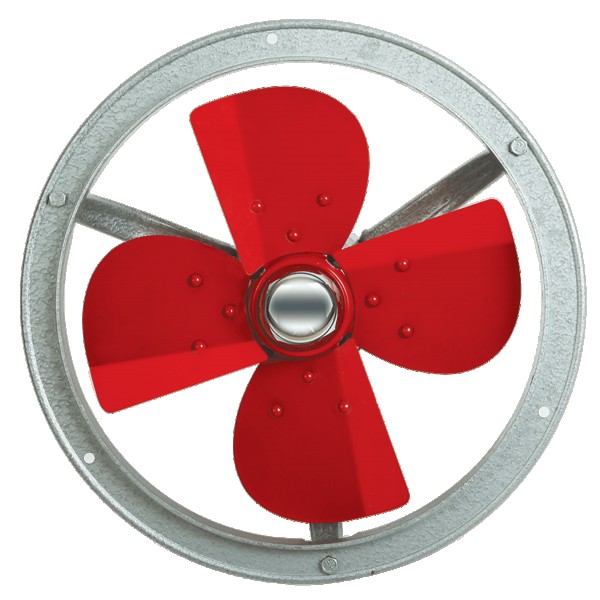

Metal Exhaust Round MR-144

Price range: ₨3235.00 through ₨8350.00

  • Dynamically balanced impellers for smooth & vibration-free operation.
  • Turbo profile blades for higher air delivery & rigid frame with rubber mountings for silent operation.
  • Totally enclosed, highly efficient heavy duty motor designed to suit voltage/supply fluctuation.
  • Epoxy enamel coating with specially pre-treated components for better resistance to corrosion and acid alkali fumes.
  • Size avaliable in 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″ and 24″
  • Pressure die casted aluminum rotor mounted on pre-lubricated double ball bearing for maintenance free running.
Clear
Compare
Add to wishlist
  Ask a Question
SKU: N/A Categories: ,
Description

General Specifications

Type Blades Sweep Warranty
Capacitor 4 150mm Yes
Capacitor 4 200mm Yes
Capacitor 4 250mm Yes
Capacitor 4 300mm Yes
Capacitor 4 350mm Yes
Capacitor 4 400mm Yes
Capacitor 4 450mm Yes
Capacitor 4 500mm Yes
Capacitor 4 600mm Yes

Technical Specifications

RPM Air Delivery Power Service Value
1350 11 m3/min 35 Watts 11.01 ft3/min/Watt
1350 13 m3/min 40 Watts 12.27 ft3/min/Watt
1350 17 m3/min 50 Watts 12 ft3/min/Watt
1350 21 m3/min 50 Watts 15 ft3/min/Watt
1350 42 m3/min 90 Watts 16.67 ft3/min/Watt
1350 42 m3/min 90 Watts 16.67 ft3/min/Watt
1200 71 m3/min 105 Watts 23.81 ft3/min/Watt
1200 109 m3/min 155 Watts 24.64 ft3/min/Watt
1000 133 m3/min 185 Watts 25.46 ft3/min/Watt

Colours Available

Red

  • Motor
  • Blades
  • Down Rod
  • Shakle
  • Canopy
  • Screws & Nuts
Additional information
Fan Sizes

10", 12", 14", 16", 18", 20", 24", 6", 8"
Color

Red
